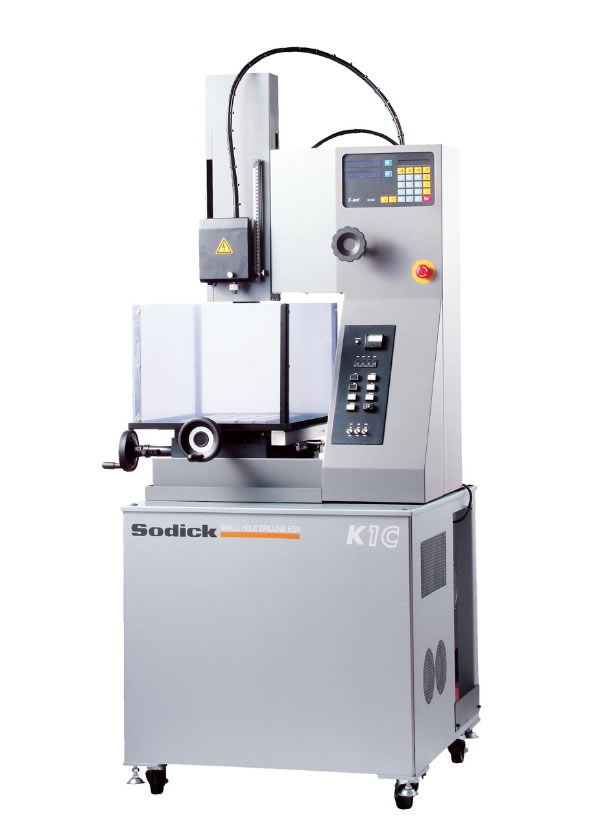

HOLE DRILLING SODICK K1C

Product code: NEW_WDK_K1C

Brand:: SODICK

Origin: Japan

Advanced features

Status: Stocking

Get a quote
Print this page
Description : HOLE DRILLING SODICK K1C
The cutting edge servo technologies
Thanks to the latest servo technologies achieved through the know-how accumulated through the development of small hole drilling machines, axis response to the servo command has been greatly improved. Compared with the previous model, two times faster machining speed has been made possible.
Micro-step axis feed
Because axis feed is controlled with micro-level precision, stable and reliable machining is ensured.
Abundant machining conditions
To meet wide range of machining needs, abundant machining conditions have been prepared to cover the combination of various types of electrodes and workpiece.

■ Material：SKD11, Cemented carbide, Aluminum, Copper, SUS, Gr
■ Thickness：10, 20, 50, 100mm
■ Electrode dimeter：φ0.25, 0.3, 0.5, 1.0, 2.0, 3.0 mm
User friendly design An operation panel was placed on the front of the machine tool for an operator to work with it more comfortably. Display was placed in line with an operator’s eye level. Tool tray was installed in the front of the machine to put dies, electrodes, and etc.

Specifications

Axis stroke X×Y×Z (mm) 200 x 300 x 300
Table size W x D (mm) 250 x 350
Max. workpiece weight（kg） 100
Machine tool dimensions W x D x H (mm) 810 x 870 x 2015
